S12 Series Laser Pipe Cutting Machine
S12 Series Laser Pipe Cutting Machine offers a choice of three feeding systems.
laser pipe cutting machine S12 series
S12 series laser pipe cutting machine uses a high-density laser beam to focus the laser through the laser head, causing the metal to melt rapidly. and at the same time with the help of high-speed airflow coaxial with the beam to blow away the molten substance, so as to achieve the purpose of cutting. It has the advantages of long service life, low operating cost, low maintenance cost, good cutting quality, no damage to the work piece, good processing flexibility,safety and environmental protection. It can cut, engrave and punching of round pipes, oval pipes, rectangular pipes,U-shaped grooves, L-shaped steels, I-shaped steels, and other special-shaped pipes.
- Long service life
- Low operating cost
- Low maintenance cost
- Good cutting quality
- Good processing flexibility
Speak to our Experts directly now
Product Details

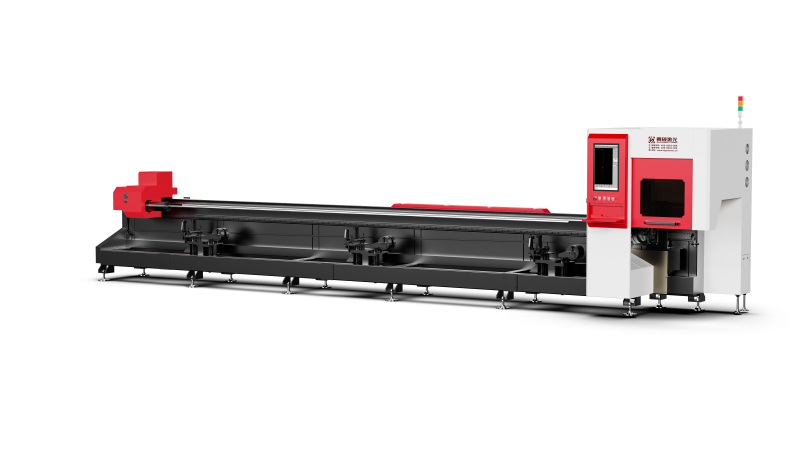

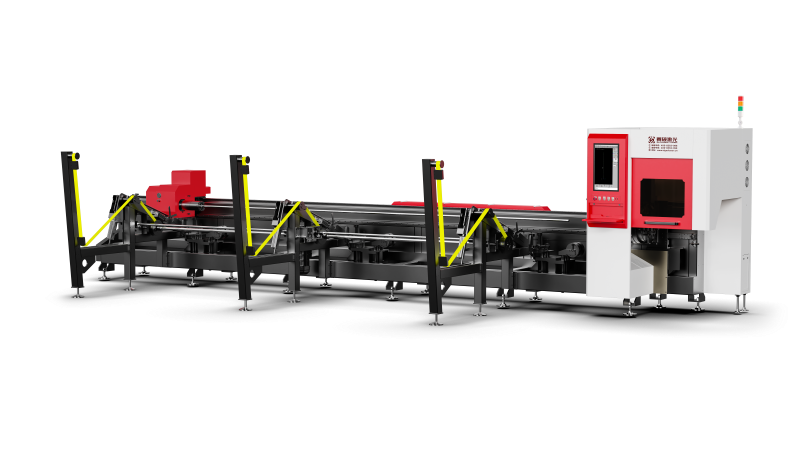

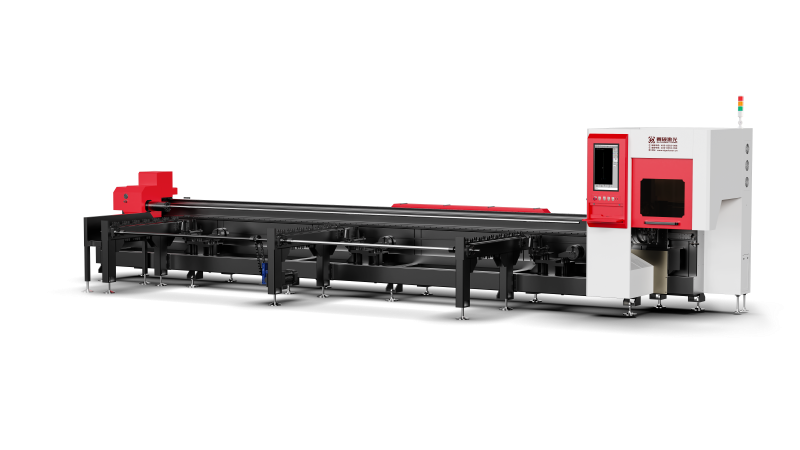

Customized Feeding System
Equipped with an integrated loading system that ensures smooth, rapid material transfer; three loading methods are available.
High-speed cutting
Equipped with a standard bus system, it delivers faster processing speeds and higher precision, with a maximum processing speed of up to 1.8G.
Ultra-short tail end
Equipped with a movable chuck, the front chuck can retract and shift, enabling ultra-short remnant lengths and saving material.
Precision cutting
Four-axis intelligent cutting head; tube cutting precision reaches 0.1 mm.
Technical Parameters
| Product name | S12 laser pipe cutting machine | Loading method | Fully Automatic / Semi Automatic / Manual |
| Rated output power of laser | 1000W-6000W | Cutting pipe diameter | 10mm-120mm |
| Cutting precision | 0.1mm | Maximum effective cutting thickness | ≤8mm |
| Maximum processing speed | 1.8G | Maximum speed of chuck | 180PRM |
| Tail | ≤60mm | Material pulling method | Rear Push Material |
| Equipment size | Fully Automatic 8940*2900*2000mm | Semi Automatic 8940*2300*2000mm | Manual 8940*1300*2000mm |
Customization options
Work Samples
Related Products
About Sunrise laser
Sunrise Laser adheres to independent innovation and has more than 100 patents in total. It is an innovative small and medium -sized enterprise in Guangdong Province, a national specialized and sophisticated small and medium-sized enterprise, a national high-tech enterprise, and a Chinese independent innovation enterprise. We have been cooperating with Zhejiang University of Technology for nearly 10 years, and our laser equipment research and development team is highly skilled in providing practical and feasible laser welding solutions.
Sunrise Laser always adheres to the core values of “quality is life, service is paramount”, putting quality and service fist,and continuously promoting the development and application of laser welding equipment. Choosing Sunrise Laser means choosing professional,efficient and precise laser welding solutions. We look forward to working with you to create a better future!
As a 10+ years laser pipe cutting machine manufacturer, Our customer-centric approach means that Sunrise Laser not only provide exceptional products, but also offer comprehensive pre-sales and after-sales support. Whatever your inquiry or requirement, our team is ready to support you.
