Handheld laser welding machine MINI series
As a leading handheld laser welding machine manufacturer, Choosing Sunrise laser means more than acquiring advanced machinery; it means entering a partnership built on trust and shared success. We understand that integrating new technology is an investment.
Handheld laser welding machine MINI series
Sunrise’s independently developed handheld laser welding machine is compact yet powerful, easy to operate, and boasts a fast welding speed. It can perfectly weld a variety of metal materials and is widely applicable to welding processes in industries such as cabinetry, elevators, shelves, ovens, and stainless steel doors and windows
- Small size, flexible operation and easy mobility
- 3-5 times faster than traditional welding
- One machine can replace 5 professional welders
- Can work continuously for 24 hours
- Laser service life up to 100000 hours
- Workers without experience in welding can operate in 5 minutes.
Speak to our Experts directly now
Product Features
Small size
Small size, flexible operation and easy mobility
High efficiency
Workpiece welding is completed in a single pass, with welding efficiency 2 to 5 times that of traditional methods.
Aesthetically pleasing weld seams
No weld slag or spatter
Smooth, even weld seams; resistant to deformation
easy operation
Workers without experience in welding can operate in 5 minutes.No welding certification required; female workers can also operate the equipment.
Suitable for a variety of materials
Capable of welding materials such as stainless steel, carbon steel, galvanized sheet, aluminum, and iron.Produces bright, smooth weld seams with no black smoke, spatter, or slag.
Technical Parameters
| Laser Power | 1000W-2000W | Working Temperature | -5℃~40℃ |
| Working Voltage | 220V(or customized) | Working Humidity | 30%~80% |
| Fiber length | 8M (standard) or customized | Weld Seam Requirements | ≤1.6mm |
| Welding Thickness | 0.5~5mm | Water Type for Chiller | Distilled / Purified Water |
| Laser Wavelength | 1070NM | Welding Materials | Stainless steel, carbon steel, iron, aluminum, galvanized sheet and other metal materials |
| Working Modes | Continuous /Spot Welding | Optional Welding Gas | Argon Or Nitrogen |
| Welding Speed | 0~120mm/s | Laser Welding Gun | Swing |

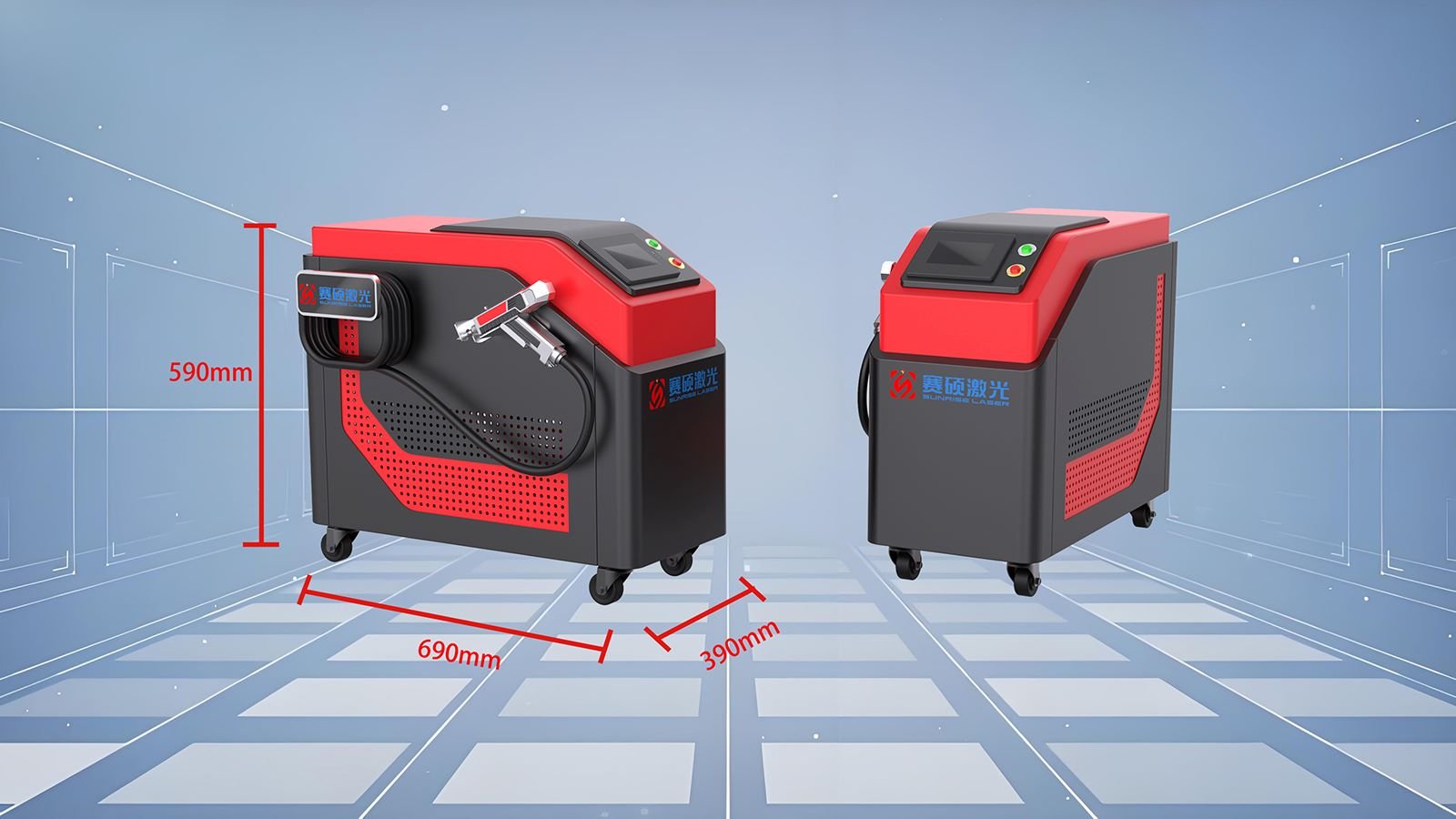

| Chiller | Industrial Thermostatic Water Tank | Size | 690*390*590mm |
| Chiller Capacity | 12L | Weight | 75KG |
Product Details
High-performance fiber laser
Higher electrical-to-optical conversion efficiency, longer service life, capable of continuous 24-hour operation, and low maintenance costs.
- Good beam quality
- High energy density
- Adjustable light output frequency
Single/Dual-Oscillation Welding Head
Utilizing an advanced oscillating handheld welding gun, it supports multiple beam output modes—such as linear and dot patterns—to meet welding requirements for various materials and plate thicknesses.
- Optional automatic wire feeding
- Compact and lightweight
- Flexible handheld operation
Intelligent Dual-Temperature Chiller
The industrial-grade water chiller provides excellent protection for the equipment’s internal components, significantly extending its service life.
- Temperature control accuracy reaches ±0.5°C.
- Multiple alarm and protection features
- Dual-temperature, dual-control
Fully automatic wire feeder
Features rapid wire feeding with support for four wire sizes (0.8, 1.0, 1.2, and 1.6 mm), adjustable feed speed, and manual wire feed/retract functions.
- Adjustable wire feed speed
- Automatic wire feeding
- Fast and efficient
Customization options
Customized appearance
Sunrise laser custom laser machine cabinet color according to your design. Swipe through the images to view existing color examples, or contact us to customize your own exclusive color.
Customized Logo
We support customizing your brand logo on the laser machine; you may choose between silk printing or crystal decals. Your brand logo will be perfectly showcased.Find the location
Customized Accessories
For core laser machine components—such as lasers, welding guns—we offer a wide range of configuration options to choose from, all sourced from reliable, major-brand suppliers.
Work Samples
